Roller feed conveyor 510
technical data
PDF [ 647 KB]

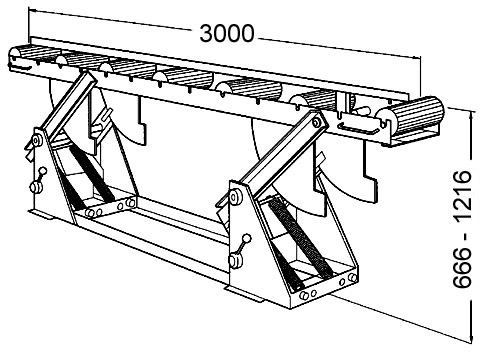

Roller Feed Conveyor

Ref. No. 510

Technical Data

length

3 metres

manually height-adjustable

500mm to 1,250mm

carrying capacity

500 kg

net weight

190 kg



510-3:



Roller feed conveyor
equipped with:

5 cylindrical rollers, 3 Vee-rollers

part no.

47116 001 00 00



510-1:



Roller feed conveyor
equipped with:

8 cylindrical rollers

part no.

47116 002 00 00

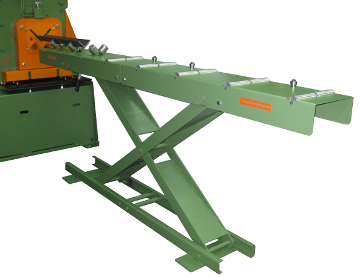

The infinitely height adjustable roller feed conveyor is suitable for the manual material feed at each working station
of the combined steelworkers Peddibasic, Peddicat, Peddiworker, Peddimax, and the Peddimaster range as well as
the punching machines model Hydraulic and the flat bar shear FS 800.




height-adjustable via ratchet


cylindrical roller
part no. 47116 150 00 00




Vee-roller
part no. 47116 160 00 00
