Original-Peddinghaus
Problem + Solution
Solving your punching, shearing or notching problem
Our tool service will design and develop tools and attachments in accordance with your sketches or samples for solving individual problems. Please send us a drawing of the piece to be produced and, in case a machine is already available, advise type and serial number.
Solutions

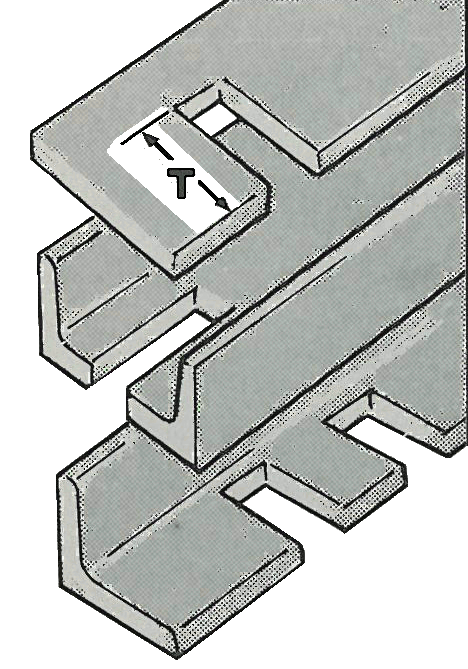

317Special punching attachmentfor punching oblong holes in angle iron
Punching attachment up to 31mm Ø for use on an eccentric pressfor using Peddinghaus punches and dies of the green series
Punching attachment up to 58mm Ø for use on an eccentric pressfor using Peddinghaus punches and dies of the blue series
Punching in the flange of UNP 80 channelexample: punching machine Hydraulic 280
Punching in the web and flange of channels and I-beamsspecial universal die block for punching machine Hydraulic 280
552Pipe notching tools - Ref. 552for the punch unit (oversize punching att. 58 Ø)
Pipe punching tool for 70 mm pipesfor opposite hole arrangement
Special punching attachmentfor producing shims
Special punching attachmentfor producing fences
CNC punching line with punching cassettesfor multiple punching in flat bar and channel
Corner radiusing tools, quadruplefor the punch unit (oversize punching attachment 58Ø)
Clip notching toolfor use on any punching machine with SV 58 Ø
Special section shear bladesExample
Special section shear bladesfor aluminium T-profiles
Frame notching tool
Rectangular slot notching tool
Shearing and double-sided radiusing toolfor Peddicat Nº 1
Pipe punching toolfor through hole punching
