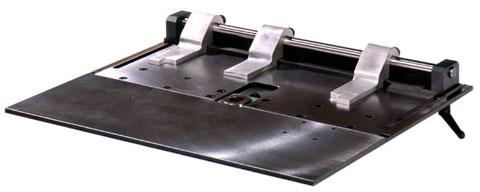

Material Support Table









Ref. No. 513

Technical Data

slot-in execution,
with mm-graduation

suitable for quick-change punching attachment up to 31 mm Ø
(for mounting on die holder no. 3)

suitable for oversize punching attachments up to 58 / 65 mm Ø
(for mounting on die holder no. 6)




PDF [134 KB]







available for models:

combined
steelworkers

single-end
punching machines

Peddimax No. 1
Peddimax 602
Peddimax 1002

Hydraulic 280
Hydraulic 502
Hydraulic 1001
Hydraulic 1250
